COMMERCIALIZED TECHNOLOGIES

AGRICULTURAL TRAMLINE SYSTEM

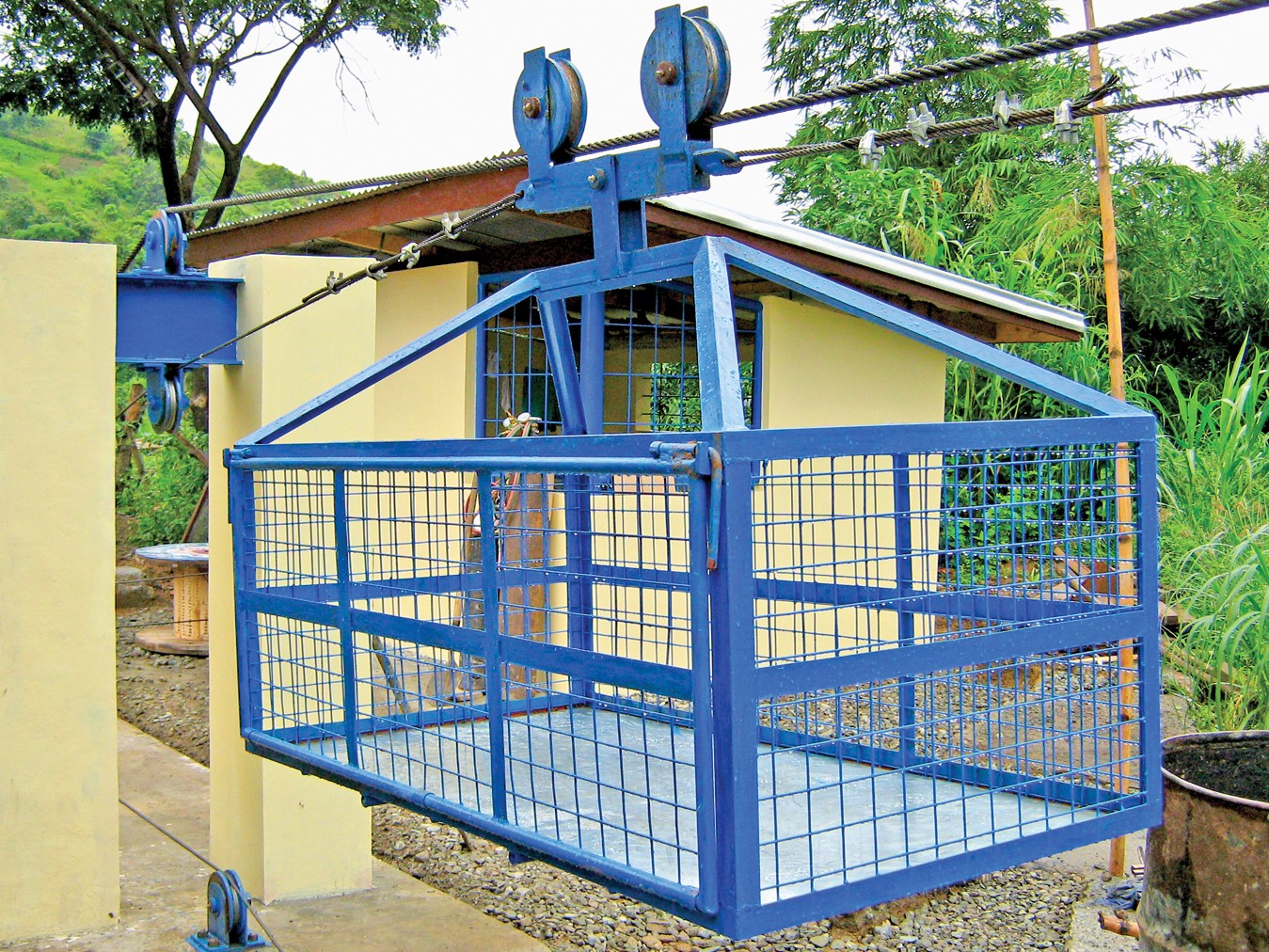

The agricultural tramline is a system of steel cable lines provided with carriers for hauling agricultural products. It runs in one direction to transport a load from a loading terminal to the discharge terminal and is reversed to bring the empty carrier back to the loading port. This tramline system is usually applied in extremely rugged areas where point to point transport is needed.

Specifications

Hauling capacity 1.50-2.0 tons/h
Carrier capacity 350-500 kg
Loading/Unloading 2-5 terminals
*Specific for a 500-m to 1 km length of tramline
Features

Bi-cable type
Can cut down hauling cost by as much as 60 percent
Can cut down manual hauling time from 1 h to 3 minutes
Cheaper than roads by as much as 11 times less
Does not require clearing of trees along the mountain farms
Consists of powerhouse, posts, cables, pulleys and carrier
